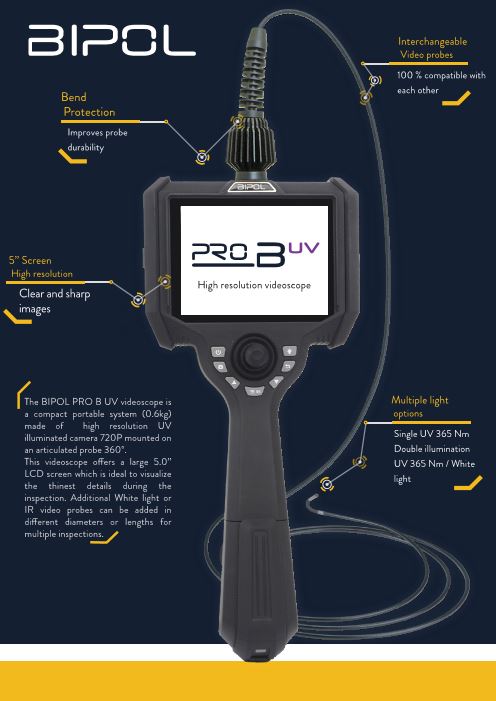

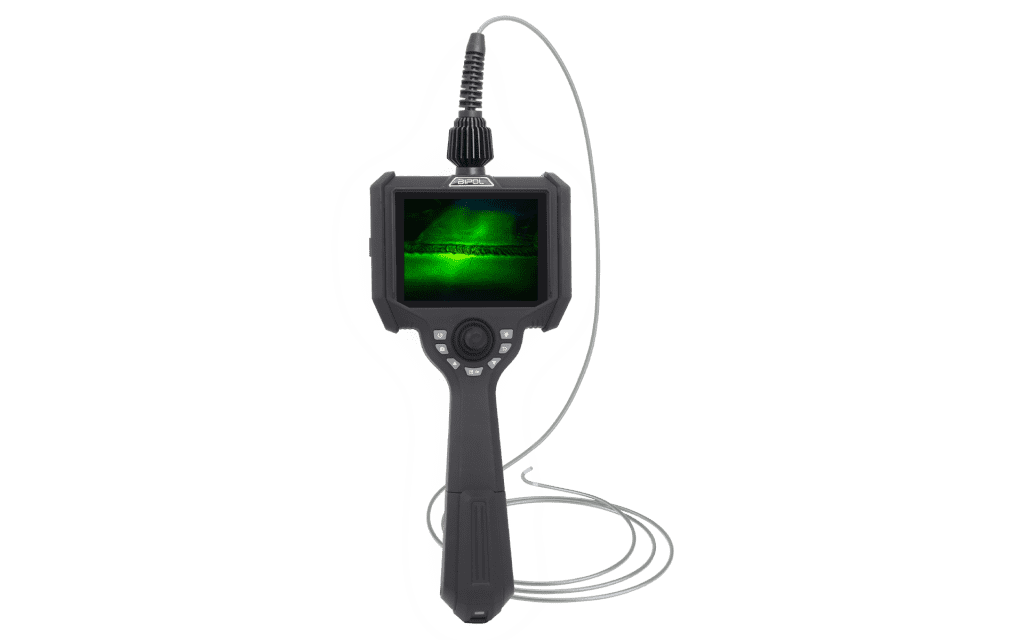

The PRO B UV (Ultraviolet) videoscope is a lightweight portable compact system featuring a high resolution 720P camera mounted on a 360° articulating probe. Images and videos are displayed on a large 5” high-definition screen.
Its ultraviolet illumination (365Nm) allows parts to be inspected in order to detect cracks and other small defects.
A double illumination probe UV/White light is available as an option allowing to get to the targeted area using standard white illumination and then conduct a UV inspection on the target.
The PRO B UV is available in a 6.0mm diameter with working lengths allowing inspections up to 3m. It can also be customized to accept a 90° Dov probe for side inspection with our without articulation.
Versatile and customizable, the PRO-B UV videoscope is compatible with all video probes from our PRO-B line. This allows you to choose the features that best suit your needs and to use a single videoscope for multiple inspections, avoiding clutter when traveling.
Images and videos can be easily recorded with a button on the handle of the videoscope. A 32 GB Micro SD card can record 32,000 images or 500 hours of video. An HDMI output allows you to connect the videoscope to an external monitor for full screen viewing of live images. The removable rechargeable battery provides 4 hours of autonomy.
It offers great versatility and resistance to wear, qualities that make it the ideal instrument for your visual inspections.
UV60 | |
Screen
|
Screen 5 inches |
Camera Diameter
|
6 mm |
Working Length
|
1 / 2 / 3 m |
Rigidity
|
Flexible |
Articulated probes
|
Yes 4x - 360° |
Joystick
|
Mechanical |
Interchangeable probes
|
Yes |
Camera resolution
|
720P |
Field of view
|
120° |
Direction of vision
|
0° |
Double vision
|
No |
Focusing range
|
Short 12-200mm |
Illumination
|
UV Light / White light |
Sheating
|
4 layer tungsten sheathing. Wear resistant. |
Protection indicator
|
IP67, water and oil resistant |
Interface
|
Measuring grid, image freezing, 360° image rotation |
Text annotation
|
No |
Wifi
|
Yes |
Stereoscopic measure
|
No |
Power supply
|
110-220 Va EU plug - US & GB adapters available |
Battery
|
Removable and rechargeable LI-ion battery |
Battery autonomy
|
4 hours |
Connections
|
Port mini HDMI, micro USB & micro SD card |
Images/videos recording
|
Micro SD card 32GB |
Images recording
|
960x720 JPEG |
Videos recording
|
960x720 AVI |
Working temperatures
|
-10°C to +60°C |
High temperatures
|
No |
Dimensions
|
350x155x59 mm |
Weight
|
Videoscope: 0.6kg | Carrying case: 5.0 kg |
UV60 DV | |
Screen
|
Screen 5 inches |
Camera Diameter
|
6 mm |
Working Length
|
1 / 2 / 3 m |
Rigidity
|
Flexible |
Articulated probes
|
Yes 4x - 360° |
Joystick
|
Mechanical |
Interchangeable probes
|
Yes |
Camera resolution
|
720P |
Field of view
|
120° |
Direction of vision
|
0° |
Double vision
|
Yes |
Focusing range
|
Short 12-200mm |
Illumination
|
UV Light / White light |
Sheating
|
4 layer tungsten sheathing. Wear resistant. |
Protection indicator
|
IP67, water and oil resistant |
Interface
|
Measuring grid, image freezing, 360° image rotation |
Text annotation
|
No |
Wifi
|
Yes |
Stereoscopic measure
|
No |
Power supply
|
110-220 Va EU plug - US & GB adapters available |
Battery
|
Removable and rechargeable LI-ion battery |
Battery autonomy
|
4 hours |
Connections
|
Port mini HDMI, micro USB & micro SD card |
Images/videos recording
|
Micro SD card 32GB |
Images recording
|
960x720 JPEG |
Videos recording
|
960x720 AVI |
Working temperatures
|
-10°C to +60°C |
High temperatures
|
No |
Dimensions
|
350x155x59 mm |
Weight
|
Videoscope: 0.6kg | Carrying case: 5.0 kg |
UV60
|
UV60 DV
| |||
Screen |
Screen 5 inches
| |||
Camera Diameter |
6 mm
| |||
Working Length |
1 / 2 / 3 m
| |||
Rigidity |
Flexible
| |||
Articulated probes |
Yes
4x - 360° | |||
Joystick |
Mechanical
| |||
Interchangeable probes |
Yes
| |||
Camera resolution |
720P
| |||
Field of view |
120°
| |||
Direction of vision |
0°
| |||
Double vision |
No
|
Yes
| ||
Focusing range |
Short
12-200mm | |||
Illumination |
UV Light / White light
| |||
Sheating |
4 layer tungsten sheathing. Wear resistant.
| |||
Protection indicator |
IP67, water and oil resistant
| |||
Interface |
Measuring grid, image freezing, 360° image rotation
| |||
Text annotation |
No
| |||
Wifi |
Yes
| |||
Stereoscopic measure |
No
| |||
Power supply |
110-220 Va EU plug - US & GB adapters available
| |||
Battery |
Removable and rechargeable LI-ion battery
| |||
Battery autonomy |
4 hours
| |||
Connections |
Port mini HDMI, micro USB & micro SD card
| |||
Images/videos recording |
Micro SD card 32GB
| |||
Images recording |
960x720 JPEG
| |||
Videos recording |
960x720 AVI
| |||
Working temperatures |
-10°C to +60°C
| |||
High temperatures |
No
| |||
Dimensions |
350x155x59 mm
| |||
Weight |
Videoscope: 0.6kg | Carrying case: 5.0 kg
|
