PRO C Videoscope
small diameters Ø 2.0 et 2.8 mm
Description

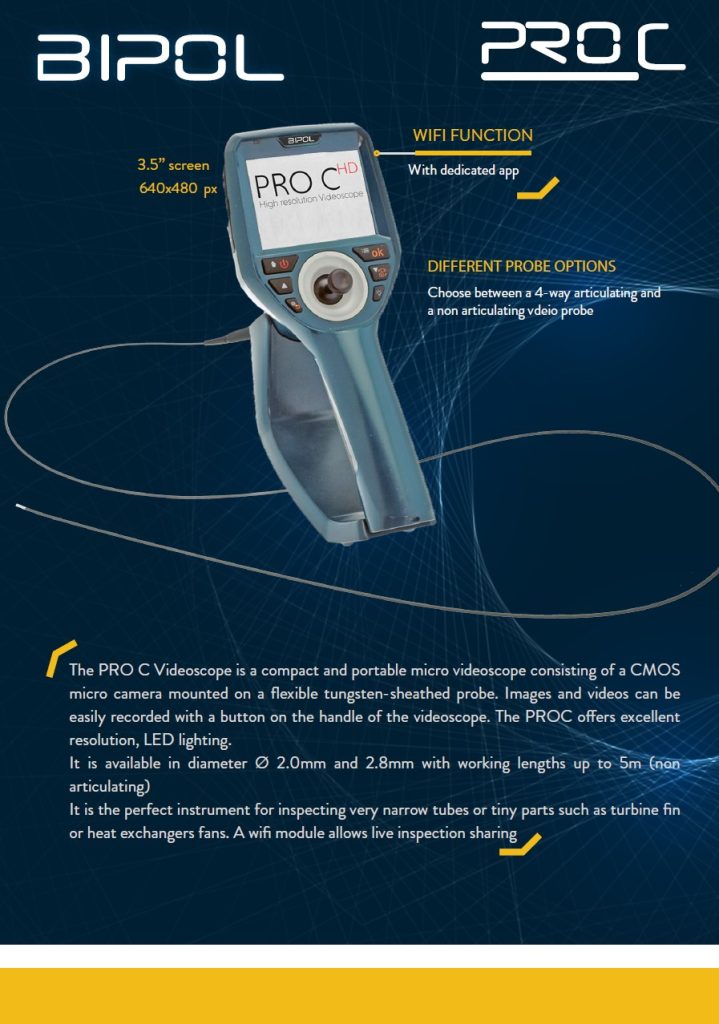

The PRO C Videoscope is a compact and portable micro videoscope consisting of a CMOS micro camera mounted on a flexible tungsten-sheathed probe. Images and videos can be easily recorded with a button on the handle of the videoscope. The PROC offers excellent resolution, LED lighting.
It is available in diameter Ø 2.0mm and 2.8mm with working lengths up to 5m (non articulating)
It is the perfect instrument for inspecting very narrow tubes or tiny parts such as turbine fin or heat exchangers fans.
FAQ
Data Sheets
Technical data
|
PROC 20
|
PROC 20NA
|
PROC 28
| ||||
| Screen |
Screen 3.5 inches
Anti reflective for daylight use | |||||
| Camera Diameter |
2 mm
|
2.8 mm
| ||||
| Working Length |
1 / 1.5 / 2 / 3 m
| |||||
| Rigidity |
Flexible
| |||||
| Articulated probes |
Yes
4-Way |
No
|
Yes
4-way | |||
| Joystick |
Mechanical
| |||||
| Interchangeable probes |
Yes
| |||||
| Camera resolution |
160 000px
| |||||
| Field of view |
120°
| |||||
| Direction of vision |
0°
| |||||
| Double vision |
No
| |||||
| Focusing range |
Short
5-50mm | |||||
| Illumination |
White light
| |||||
| Sheating |
Tungsten braid 4 layers - titanium tip & sapphire glass cover
| |||||
| Protection indicator |
Host : IP57 | Probe : IP 67 (oil & water resist) { 90° probes are IP57 only
| |||||
| Interface |
4X digital zoom - Ruler - Image rotation 360° - Image preview - Wifi
| |||||
| Text annotation |
No
| |||||
| Wifi |
Yes
| |||||
| Stereoscopic measure |
No
| |||||
| Power supply |
110-220 Va EU plug
| |||||
| Battery |
Rechargeable LI-ion 18650
| |||||
| Battery autonomy |
Up to 4 hours
| |||||
| Connections |
Video out, mini USB, HDMI
| |||||
| Images/videos recording |
Micro SD card 32 GB
| |||||
| Images recording |
640x480 JPEG
| |||||
| Videos recording |
640x480 MP4
| |||||
| Working temperatures |
-10°C to + 60°C
| |||||
| High temperatures |
No
| |||||
| Dimensions |
Videoscope: 24x11cm | Case dimensions: 42x34.5x17cm
| |||||
| Weight |
Videoscope: 0.55 kg | Case weight: 4.5kg
| |||||
Downloads
Applications
Applications
Application Wifi
The PRO C HD comes with a Wi-Fi module, enabling multi-screen image viewing. It is compatible with any Android tablet or smartphone.
Simply download the Bipol app online and transfer your images and videos directly from the SD card. This allows you to view your images on a larger screen and share them with ease.
